SPECIFICATIONS
OVERVIEW
- Ariens® AX 223CC engine with electric start
- Strong cast-iron gear case
- Ariens exclusive Rapidtrak™ technology is capable of tackling any terrain

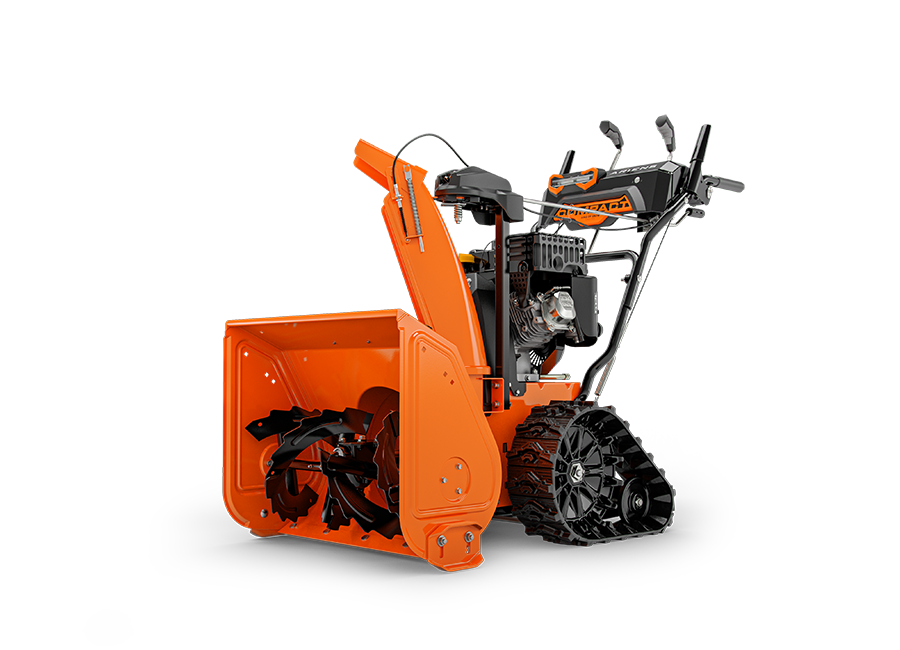

COMPACT 24 RAPIDTRAK |
Add Model to Compare
|
||
|---|---|---|---|
| TITLE |
COMPACT 24 RAPIDTRAK
|
||
| MODEL NUMBER |
920032
|
||
| POWER TRAIN | |||
| ENGINE |
Ariens AX®
|
||
| STARTING SYSTEM |
120v / Electric
|
||
| STEERING |
Auto-Turn
|
||
| DRIVE TYPE |
Disc-O-matic
|
||
| SPEEDS |
6 Forward/2 Reverse
|
||
| TIRE TYPE |
Directional Snow Track
|
||
| CLEARING SPECS | |||
| CLEARING WIDTH (IN/CM) |
24 In
|
||
| HOUSING HEIGHT |
20 In
|
||
| THROWING DISTANCE |
3 ft - 40 ft
|
||
| CHUTE ROTATION |
2.5x Quick Turn
|
||
| CHUTE TURNING RADIUS |
205
|
||
| DEFLECTOR CONTROL |
In-Dash Lever
|
||
| STAGE TYPE |
Two Stage
|
||
| AUGER DIAMETER |
11 In
|
||
| AUGER TYPE |
Steel Serrated
|
||
| IMPELLER PROFILE |
Steel 3 Blade
|
||
| IMPELLER DIAMETER |
12 In
|
||
| SKID SHOES |
Steel Reversible
|
||
| SCRAPER BAR |
Steel Adjustable
|
||
| GEAR CASE |
Cast Iron
|
||
| DIMENSIONS | |||
| LENGTH |
53.3 In
|
||
| WIDTH |
26.4 In
|
||
| HEIGHT |
44 In
|
||
| WEIGHT (ASSEMBLED) |
220 lb
|
||
| WARRANTIES | |||
| PRODUCT WARRANTY |
3 years residential use. 90 days commercial use
|
||
| GEAR CASE WARRANTY |
5 Year Consumer, 1 Year Commercial
|
||
| ACCESSORIES | |||
| FEATURES AT A GLANCE |
Light Type: LED
Handwarmers: Optional Remote Deflector Control: Standard Drift Cutters: Optional Track Drive: Standard One Hand Interlock: Standard |
||
